EMMC 5.1 FLASH KTMAGH2AHW01

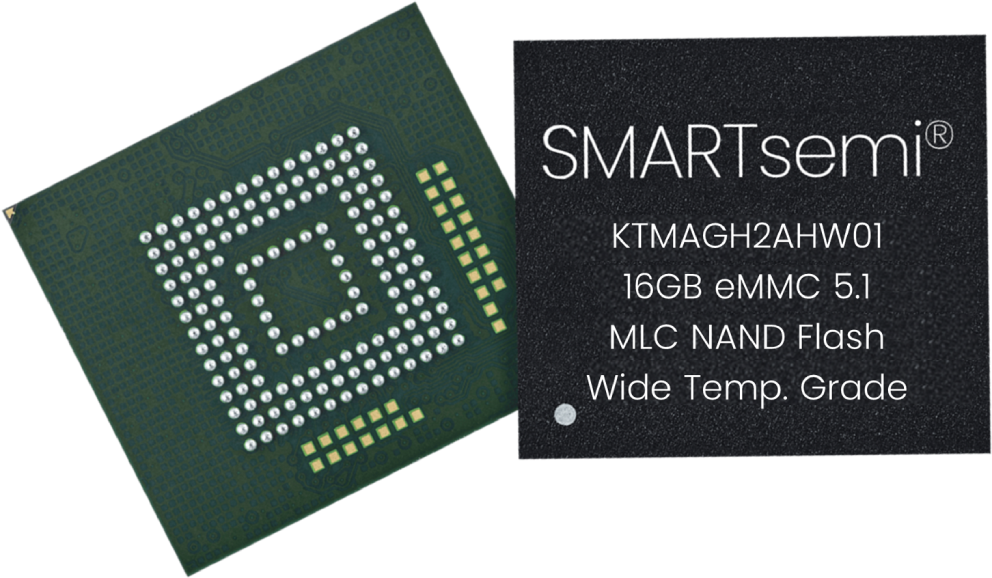

The SMARTsemi KTMAGH2AHW01 16GB eMMC 5.1 Embedded Flash Drive (wide grade) combines high-capacity MLC NAND Flash memory with a high-speed Multimedia Card (MMC) controller. The eMMC is housed in a single-package. The devices are used in a wide range of consumer, networking, communications, and industrial applications.

The device has improved Random Read performance, greater Endurance, and a wider temperature operating range compared to other 16GB eMMCs devices in the catalog. The part number refers to Tray packaging.

Key Parameters

Family
EMMC 5.1 FLASH
Flash Type
MLC NAND
Capacity
16 GB
Organization
x 1 / x 4 / x 8
Sequential
Read: 275 MB/s
Write: 94 MB/s
Random (4KB)
Read: 7290 IOPS
Write: 1866 IOPS
Endurance
40 TBW
Voltage
1.8V / 3.3V (NAND/IO)
Package
153-FBGA
Temperature
-40°C to +105°C (Wide/Automotive)
